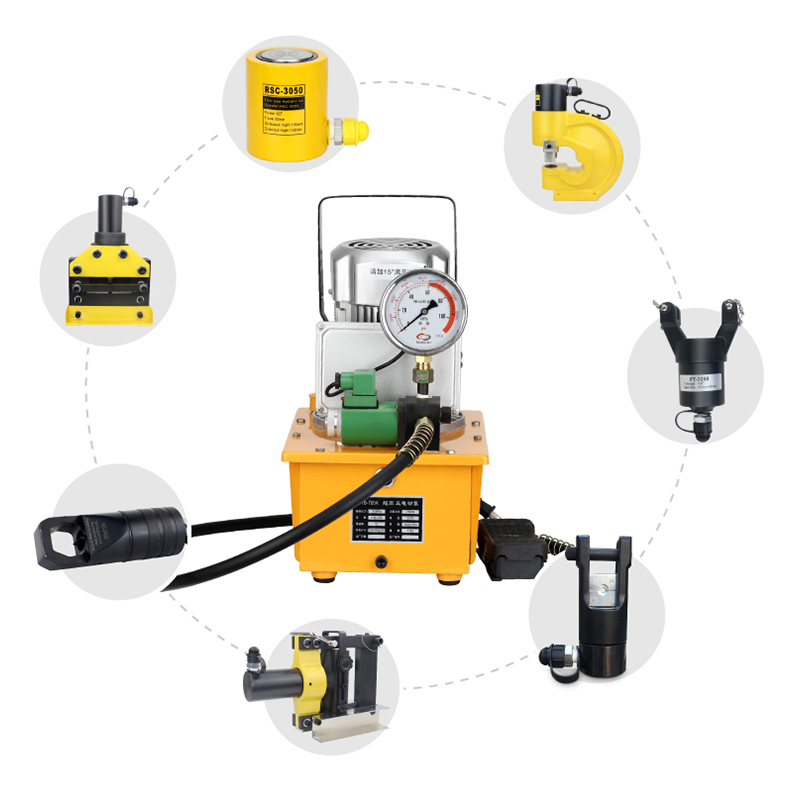

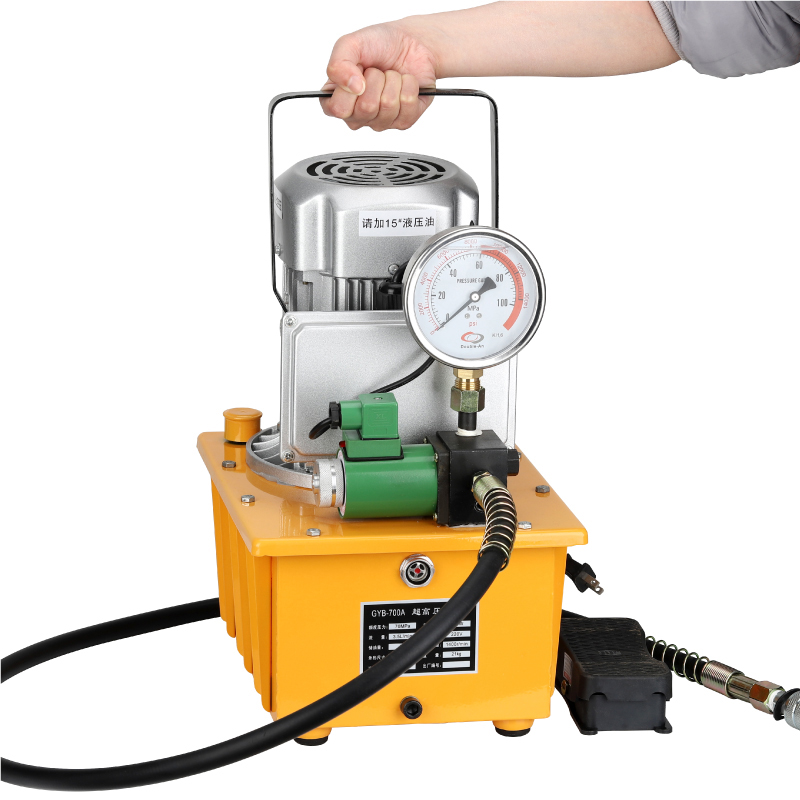

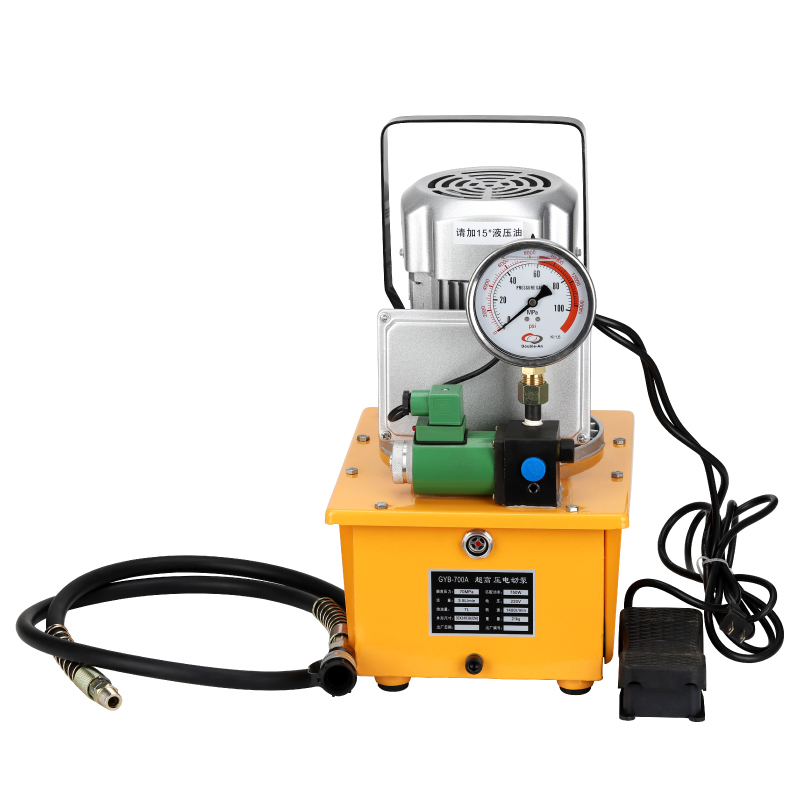

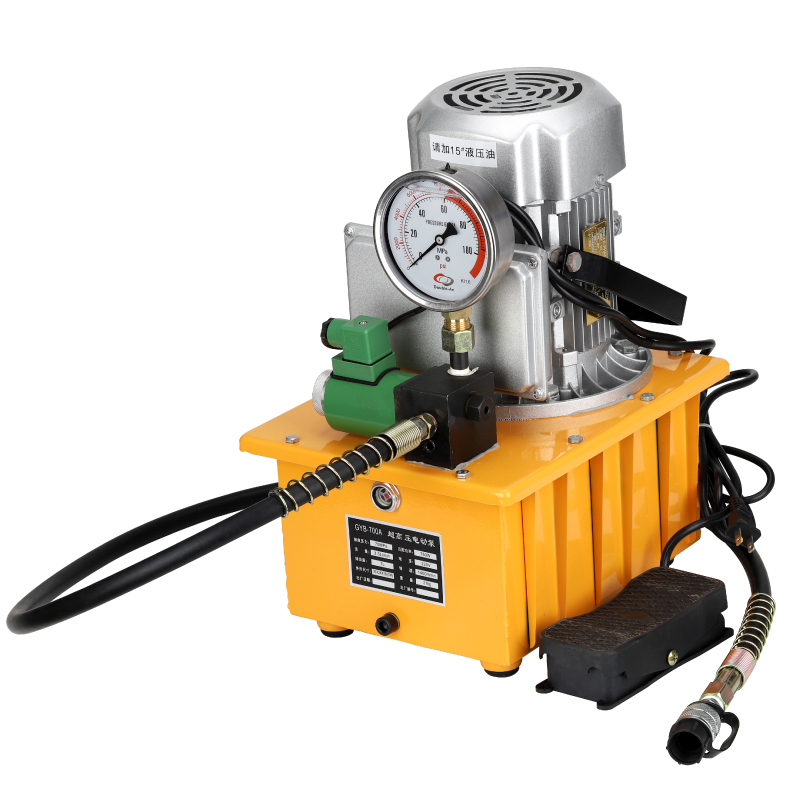

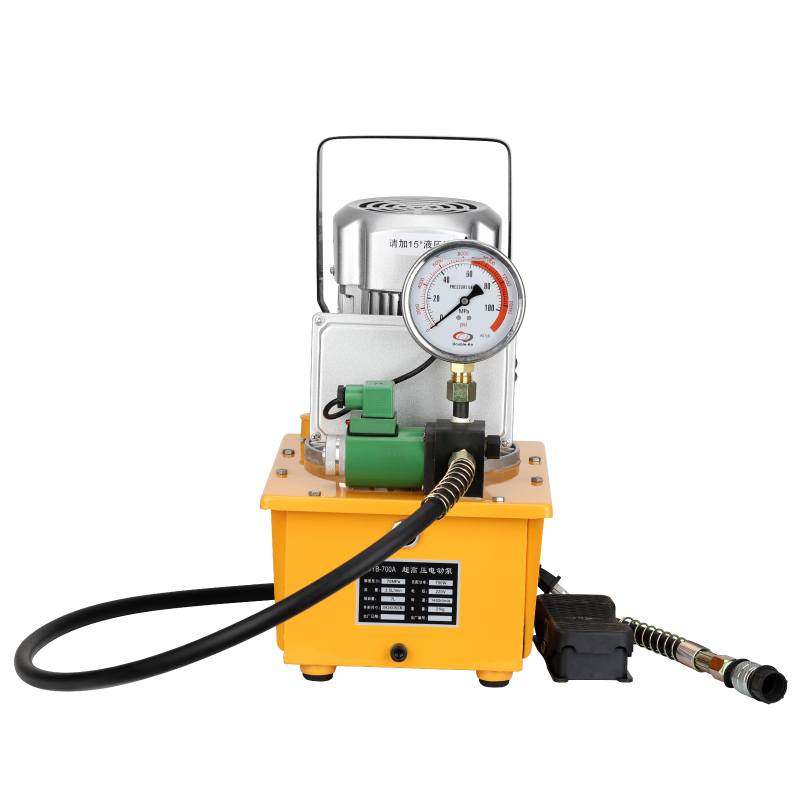

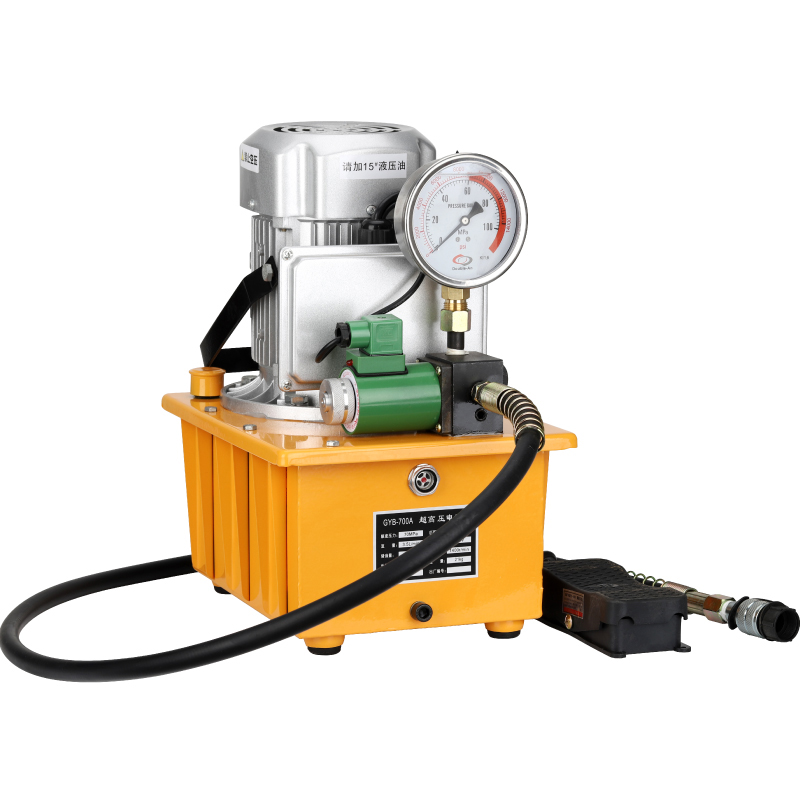

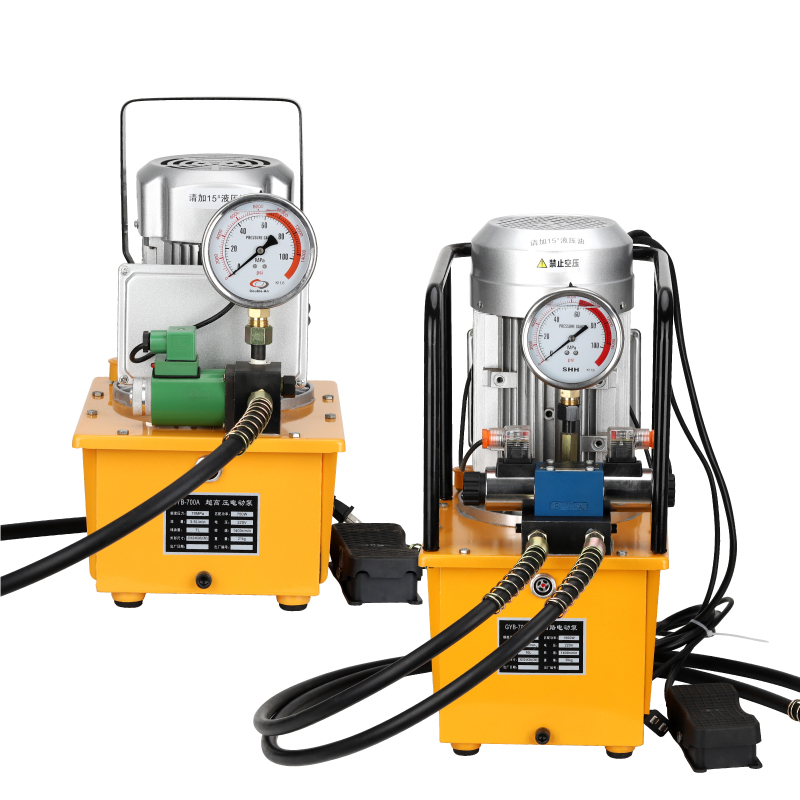

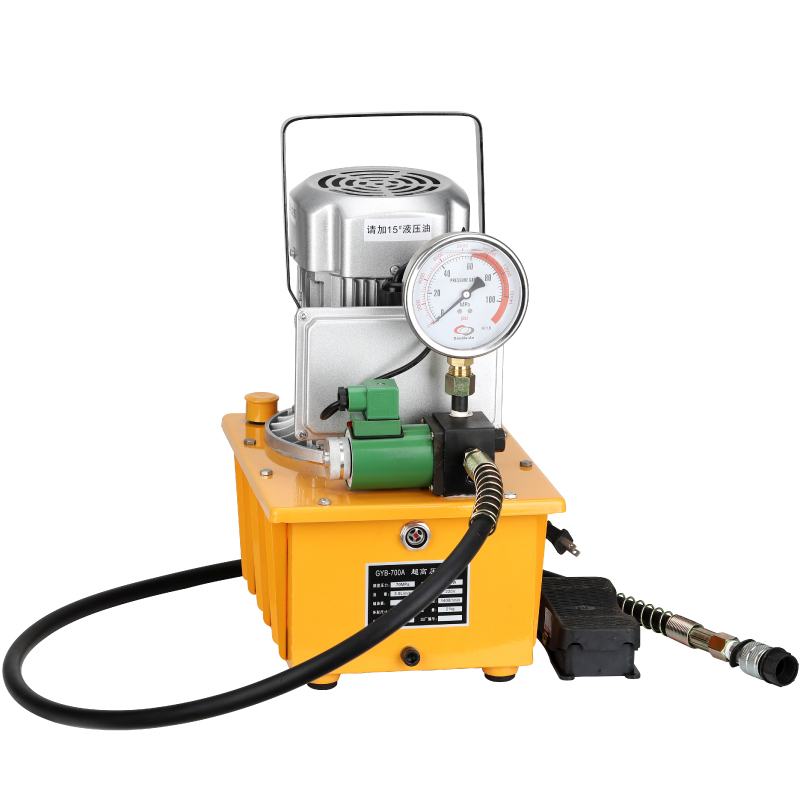

GYB-700A Electric Hydraulic Pump For Hydraulic Tools

The GYB-700A electric hydraulic pump is driven by an electric motor. It provides stable and consistent hydraulic output, significantly improving working efficiency compared with manual pumps. Equipped with a large-capacity oil tank and support for customized tank configurations, it is suitable for industrial production lines and high-frequency operation environments. The electric drive system ensures reduced labor intensity, higher flow stability, and better performance for large hydraulic tools and integrated systems.

Technology

Voltage

220V/380V

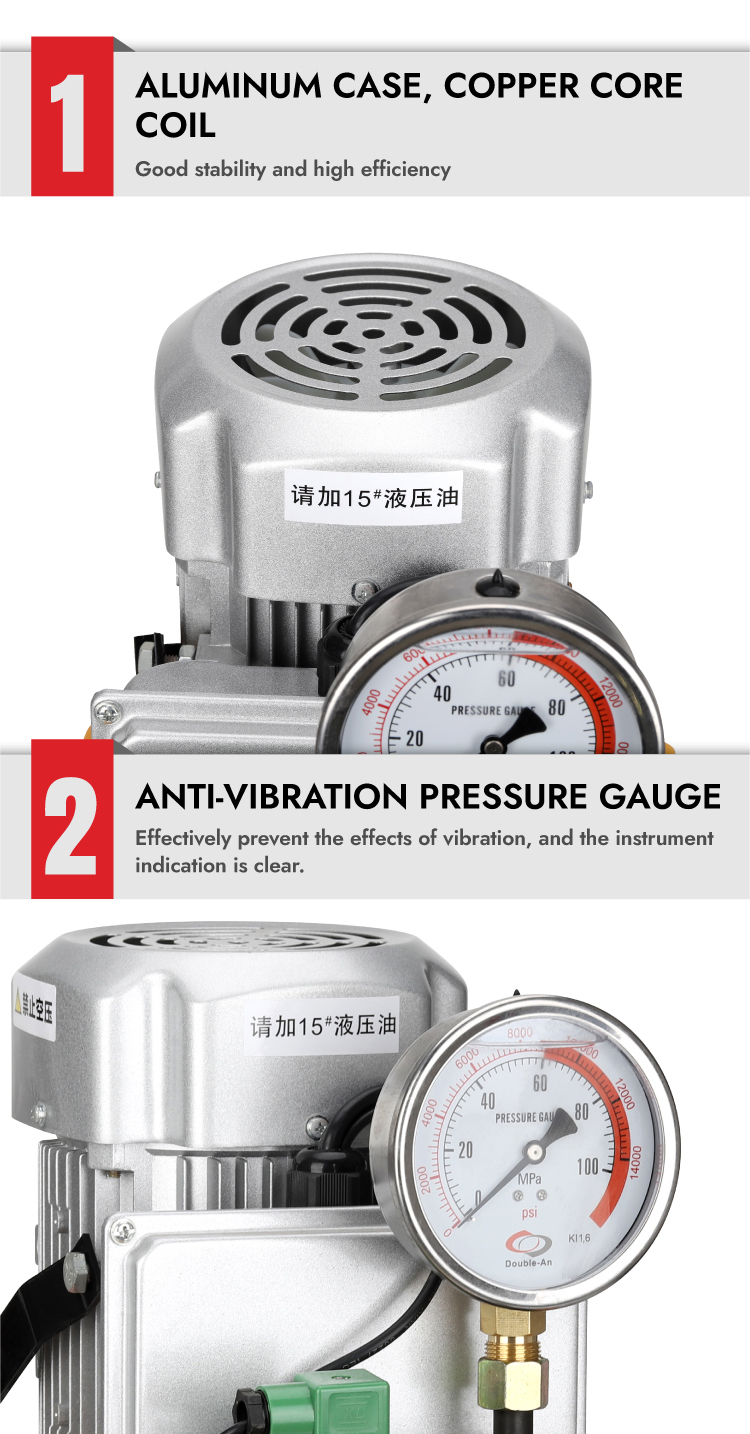

Motor power

0.75 KW

High pressure

70 Mpa

Low pressure pressure

7 Mpa

High pressure flow

1L/min (Above 7 Mpa)

Low pressure flow

5L/min (below 7 Mpa)

Frequency

50Hz

Speed

1400r/min

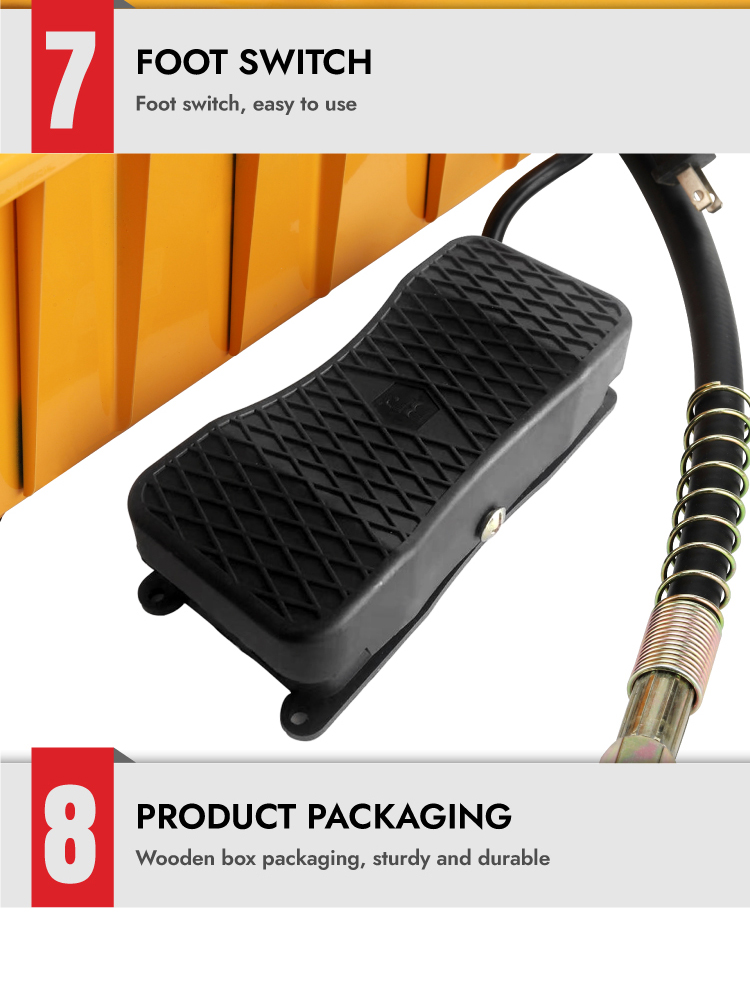

Packaging

wooden box

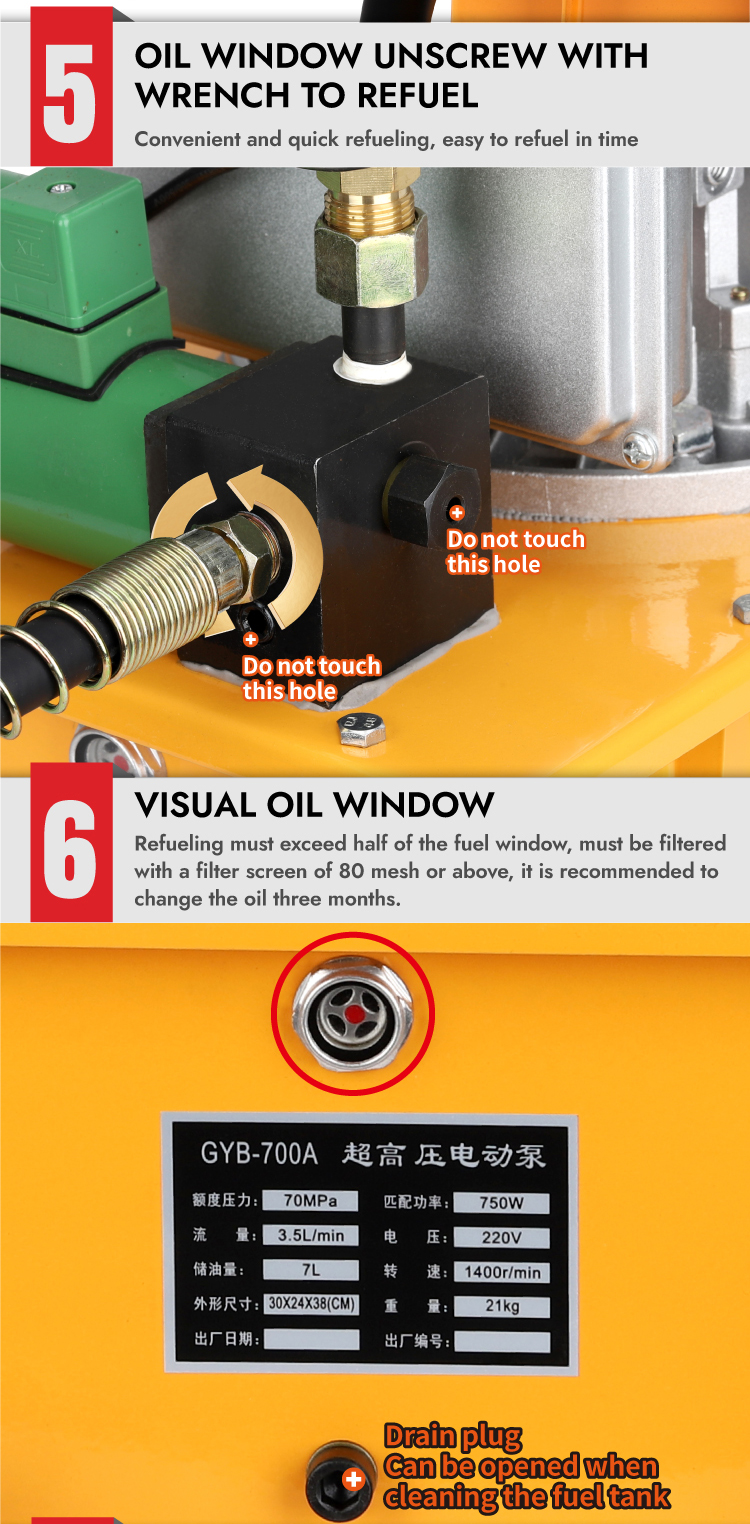

Oil storage

7L(customizable)

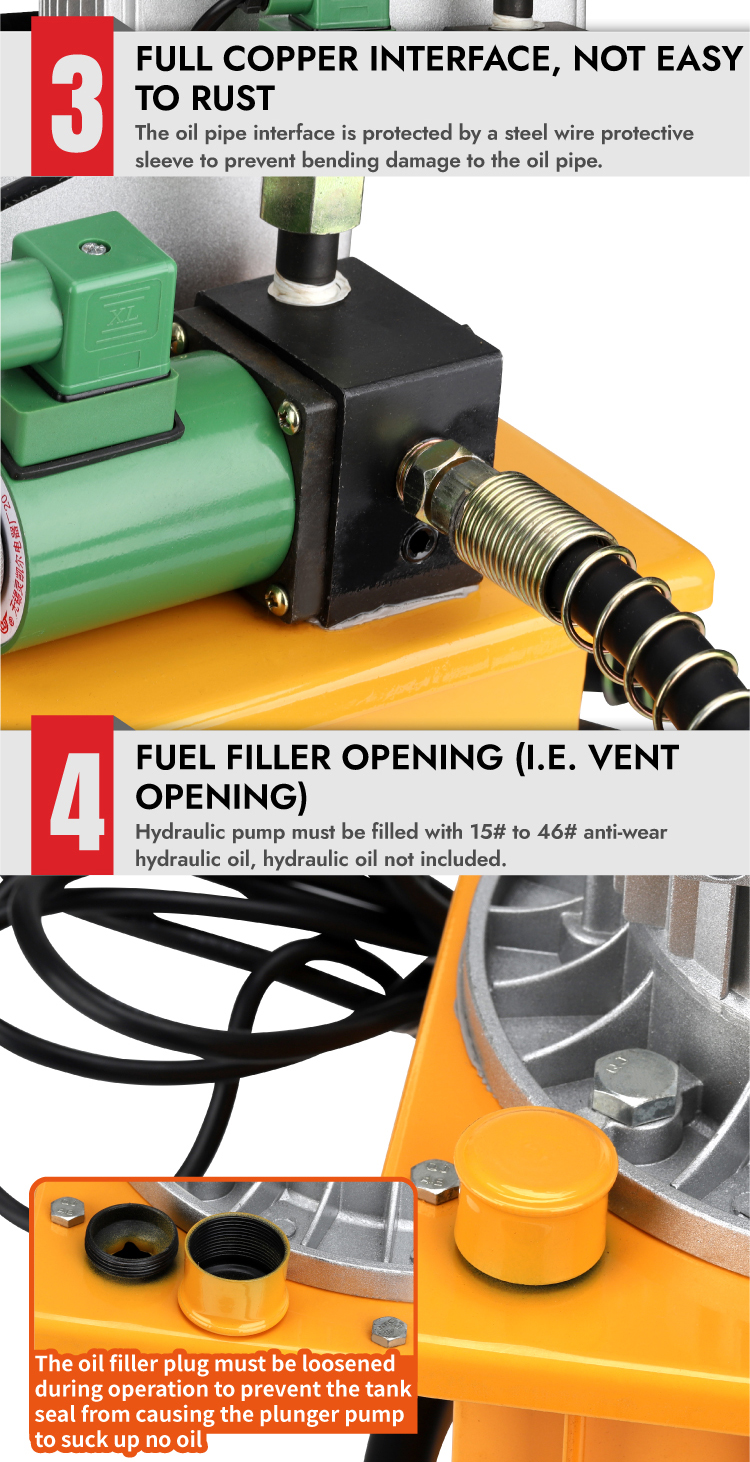

Oil variety

15# and below hydraulic oil,also can be thinner the better (the factory does not include hydraulic oil)
